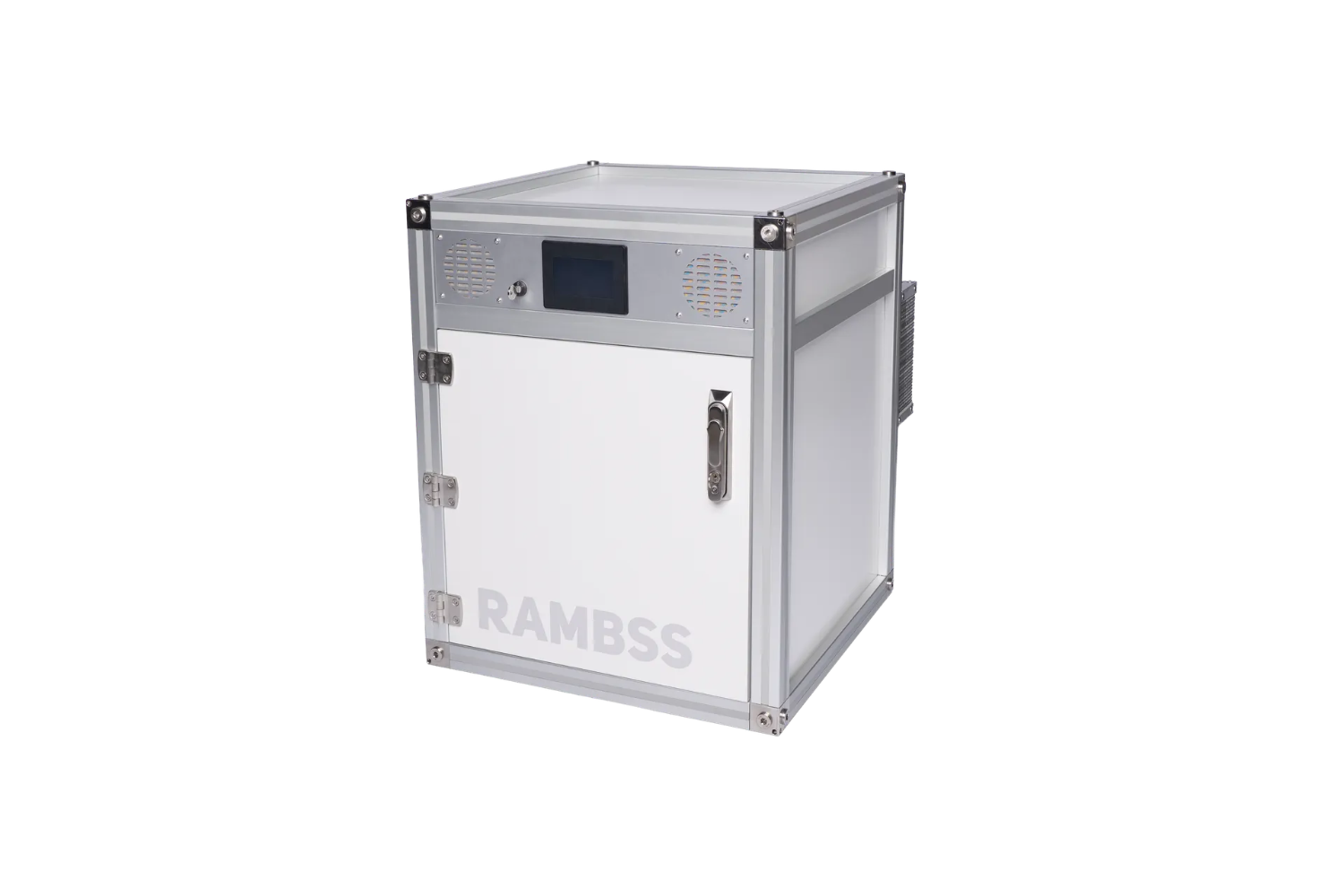

Raclan Rambss
The RACLAN RAMBSS is a modular, yacht-certified (MGN 681) containment system designed for safe charging and storage of lithium-ion water toy batteries. It features active TRIDENT® cooling fluid suppression, gas filtration for toxic emissions, and integration with vessel monitoring systems, accommodating both eFoil and Seabob packs.
Choose options
Dual Compatibility
Fits both removable eFoil packs and fully integrated toys like Seabobs.
Auto-Suppression
Instantly floods battery compartments with TRIDENT® cooling fluid to halt thermal runaway.
Gas & Blast Protection
Completely neutralizes toxic smoke and isolates catastrophic explosions via its ballistic housing.

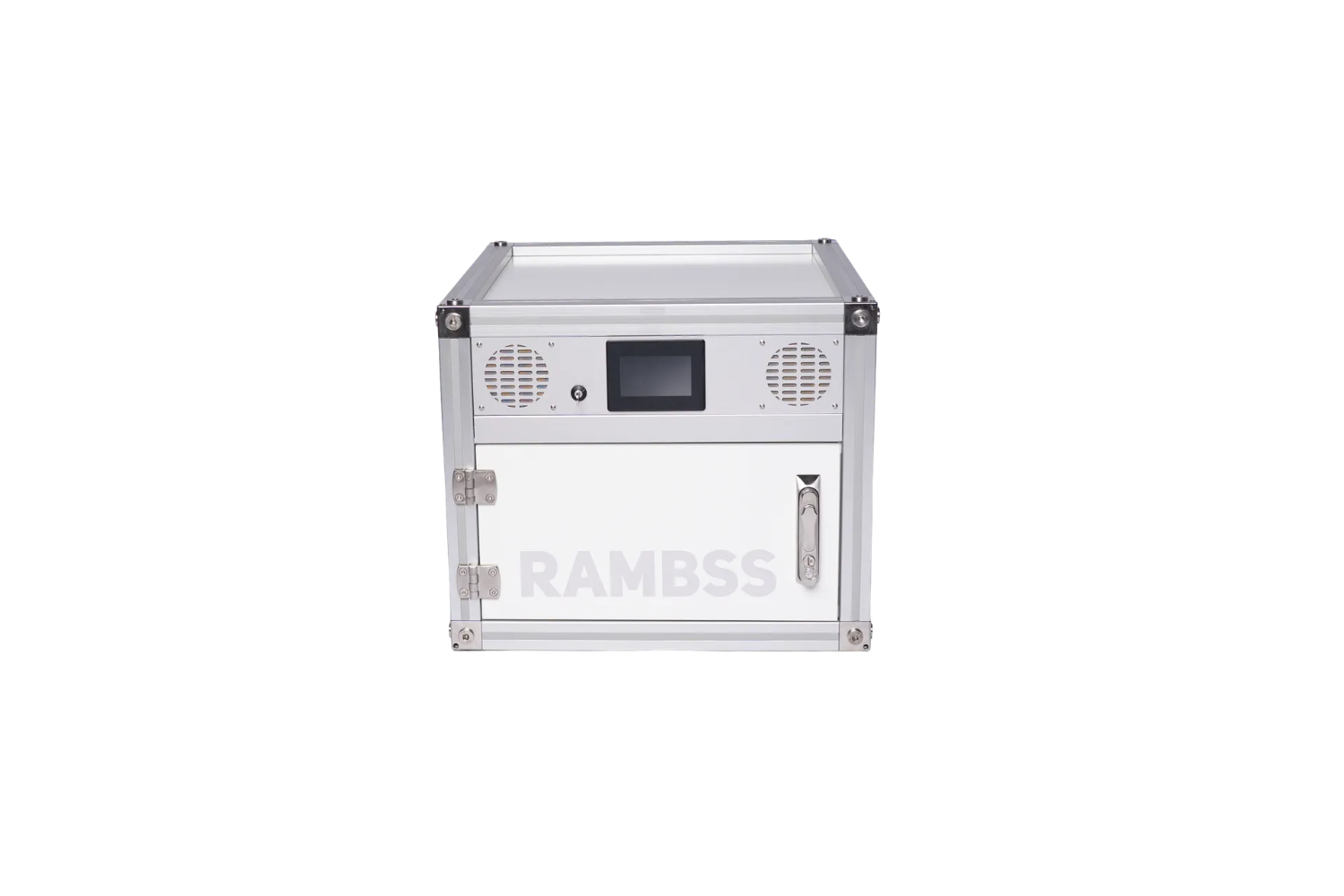

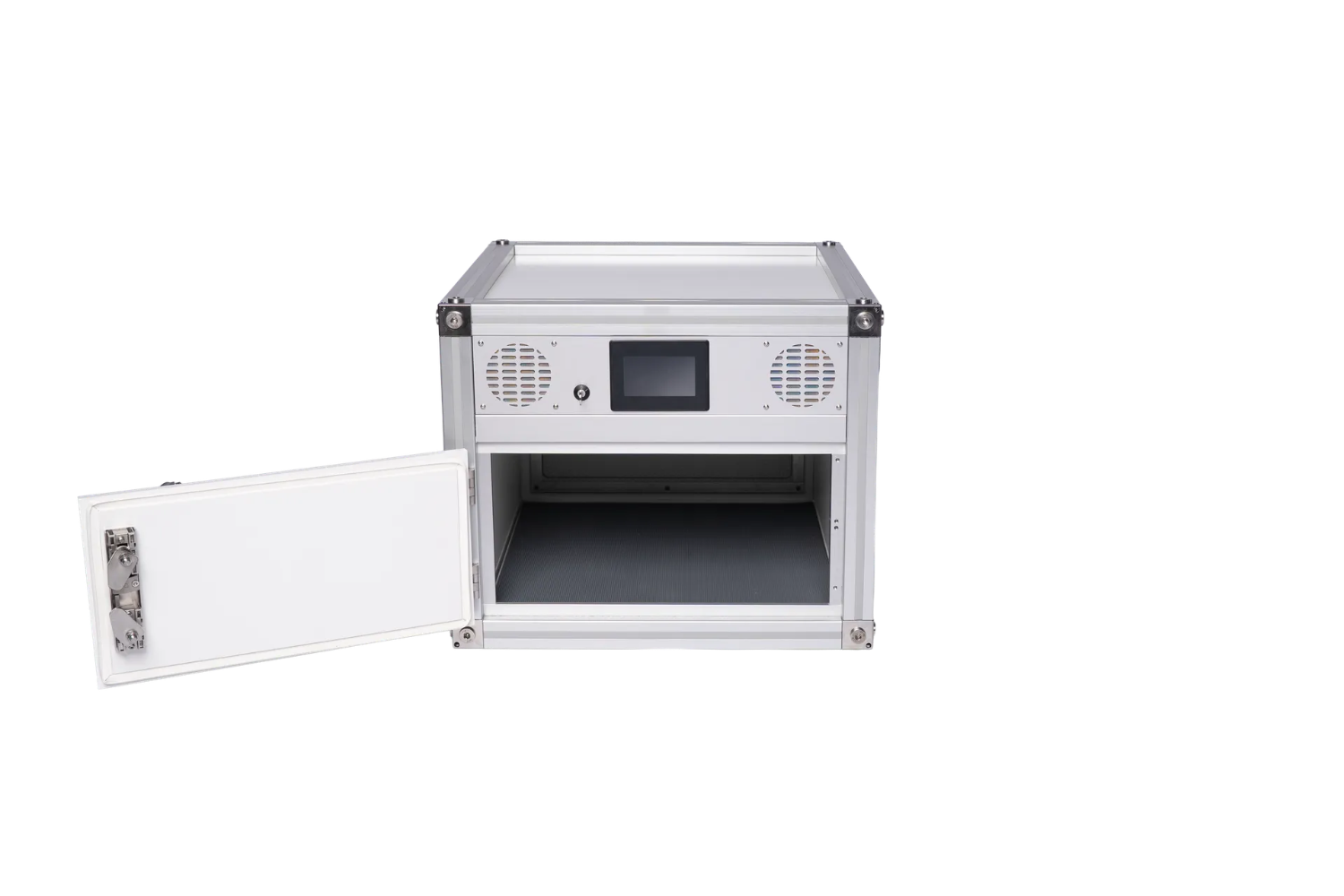

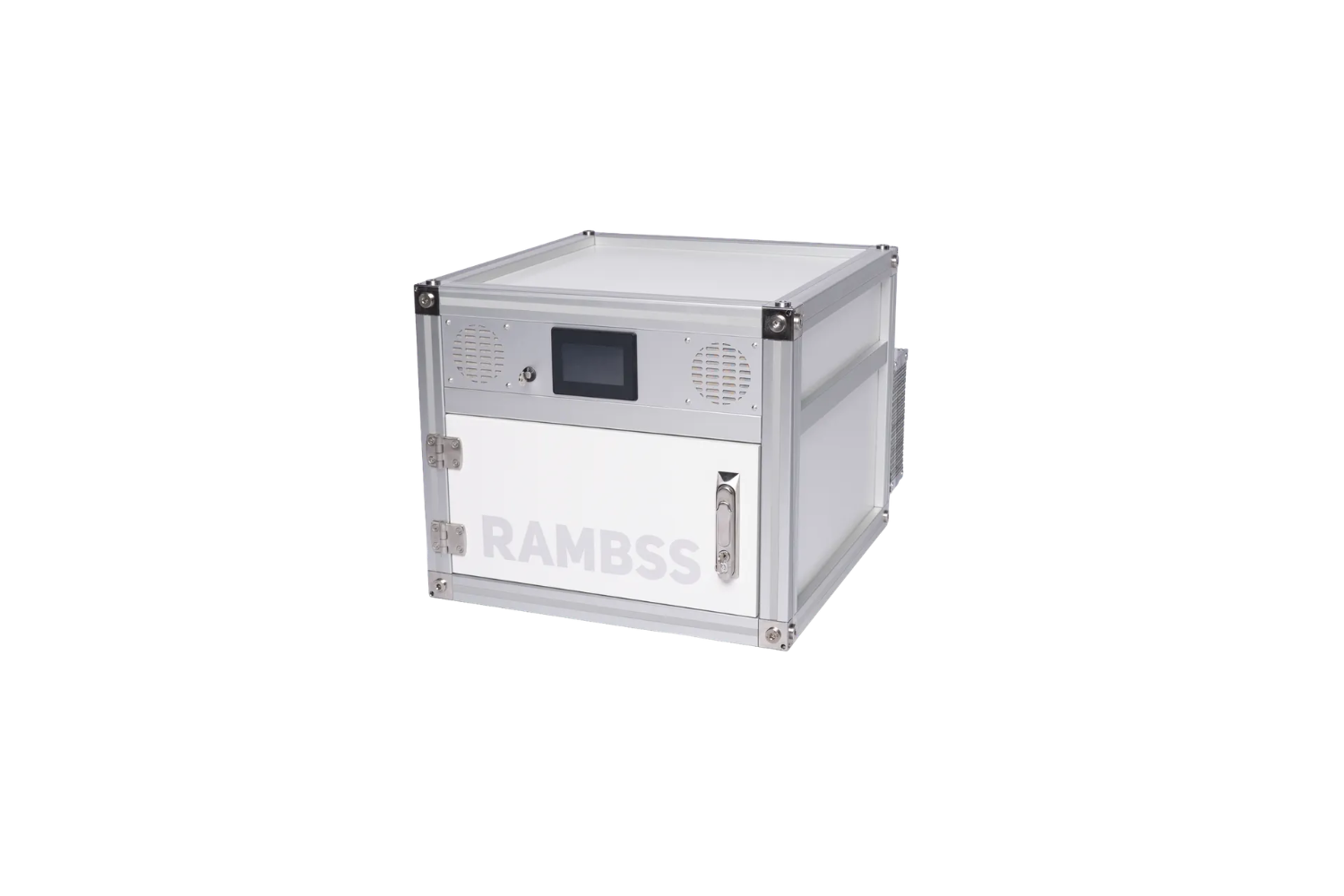

Module 500 Dimensions: 700 × 600 × 500 mm (Internal: 520 × 550 × 280 mm)

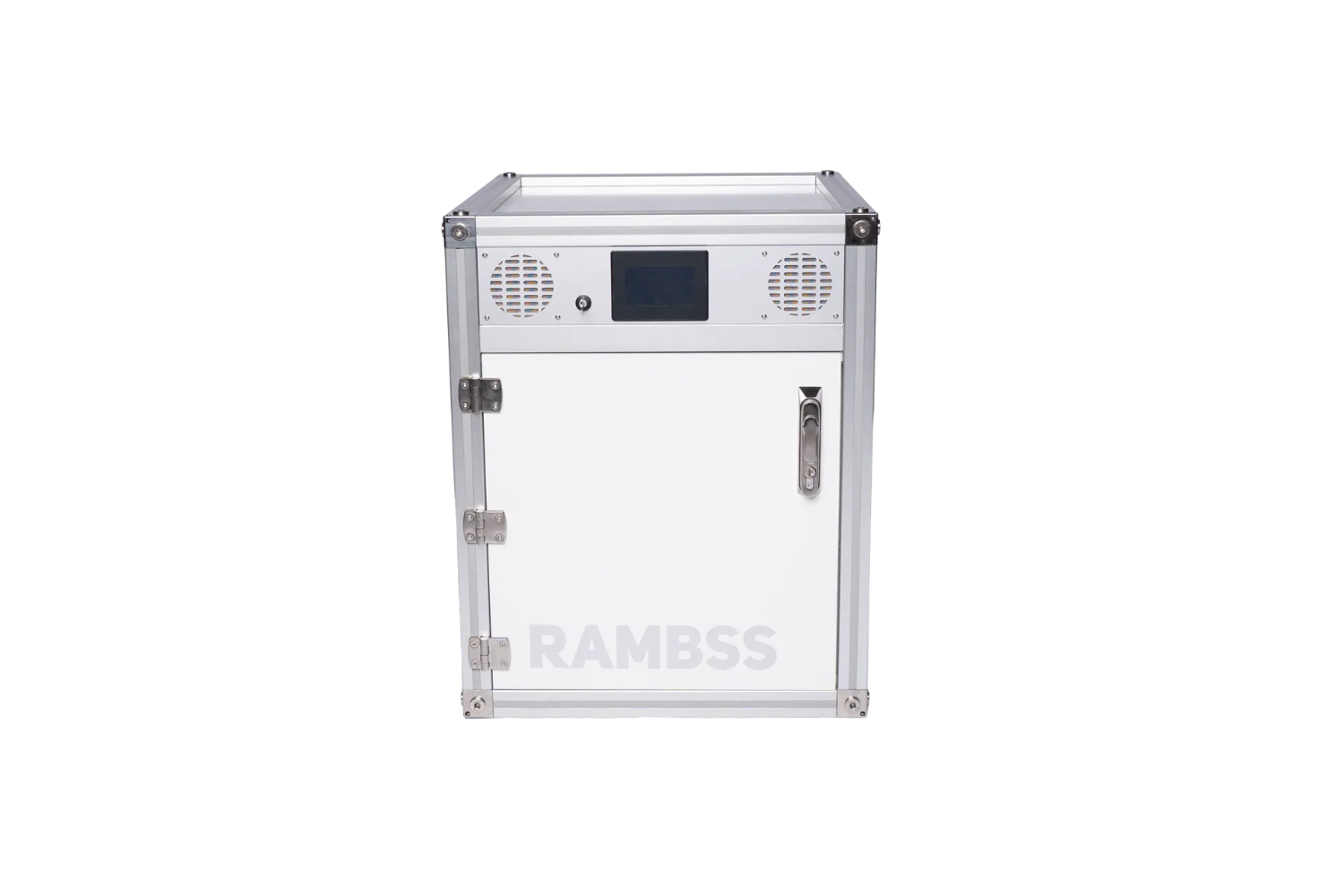

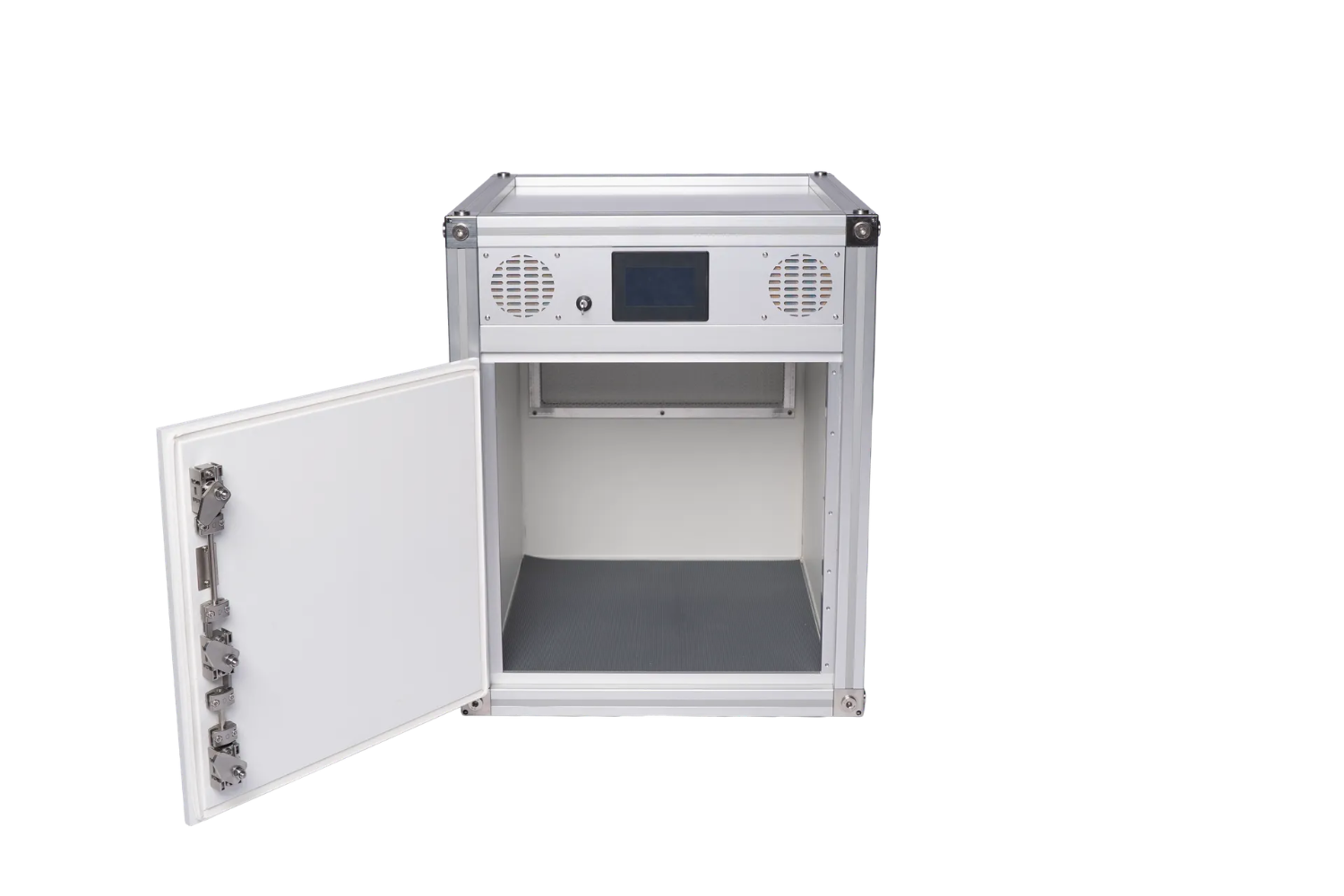

Module 750 Dimensions: 700 × 600 × 750 mm (Internal: 520 × 520 × 532 mm)

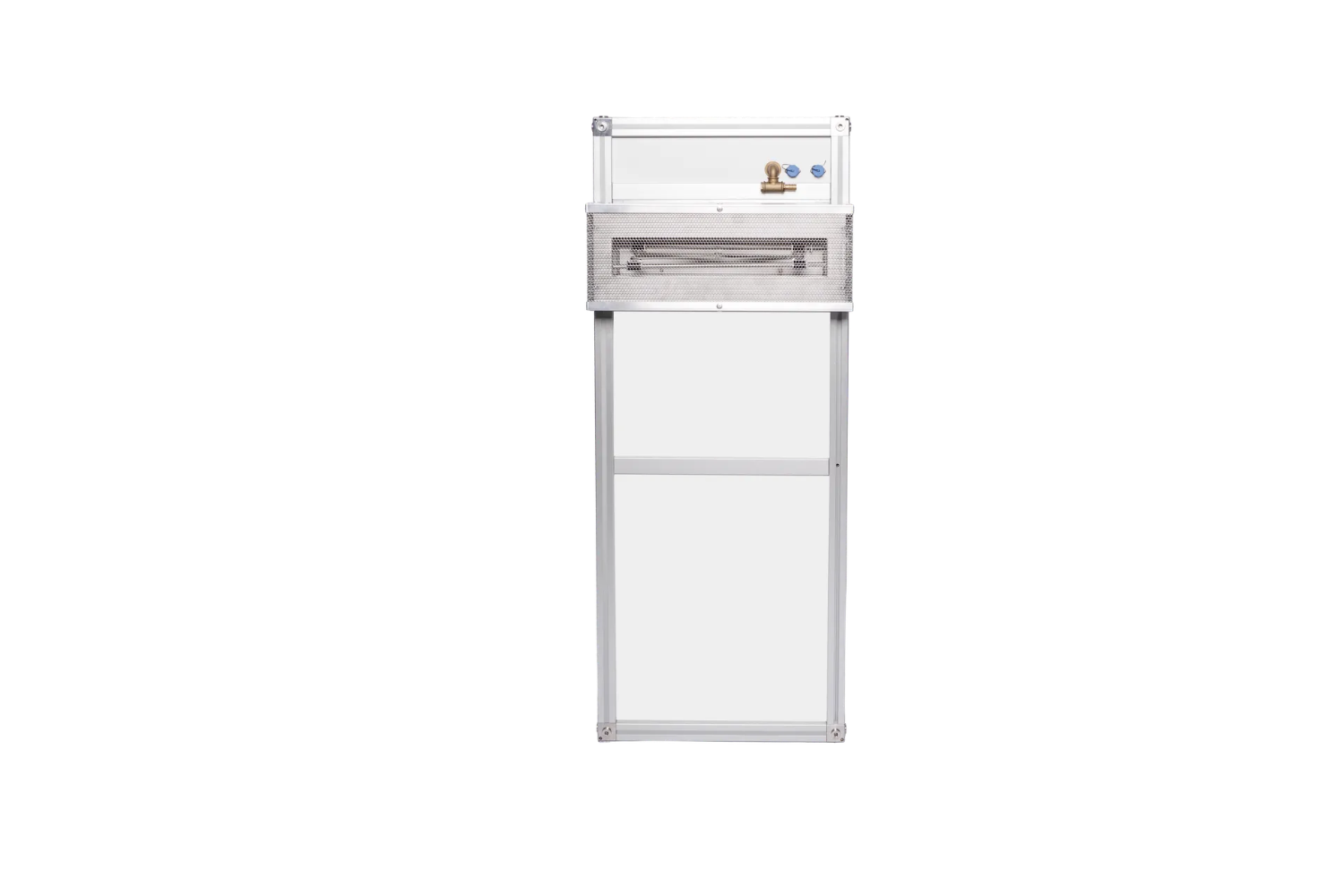

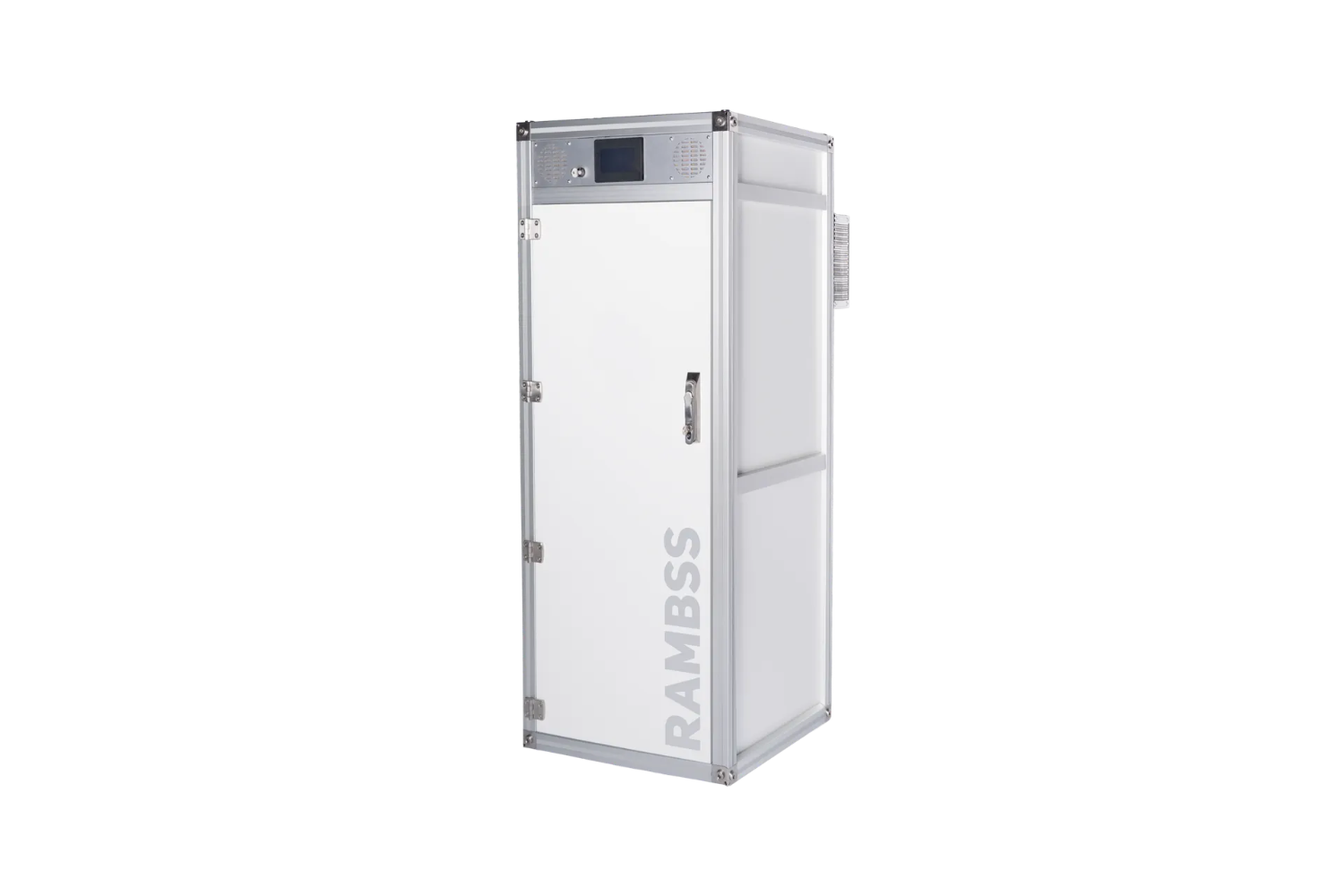

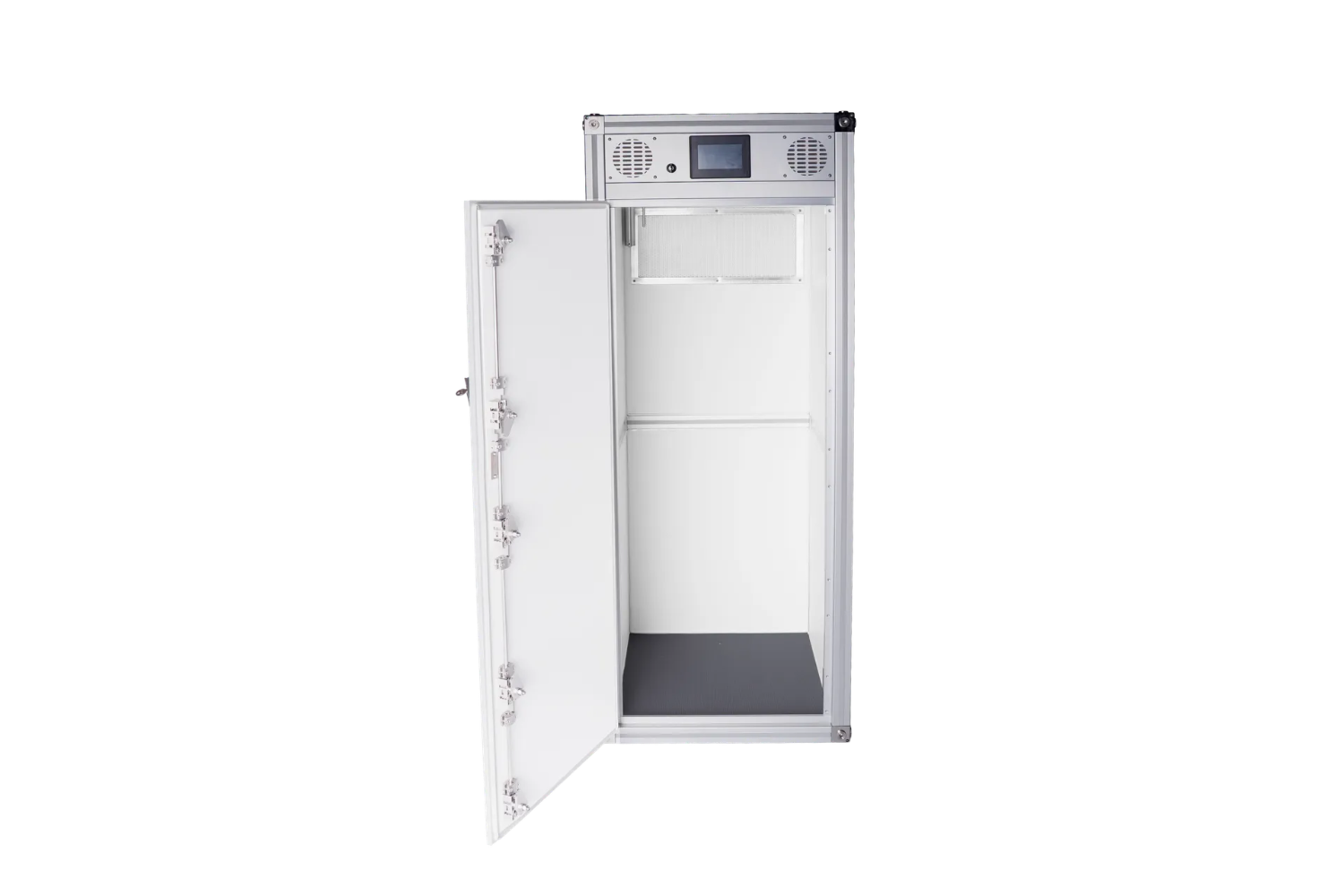

Module 1500 Dimensions: 700 × 600 × 1520 mm (Internal: 520 × 520 × 1300 mm)
Module Weights: 45 kg (Mod 500) | 75 kg (Mod 750) | 115 kg (Mod 1500)
Max. Battery Capacity: Up to 5.25 kWh per storage cell
Housing Material: Ballistic composite housing with pressure-absorbing elements
Interior Lining: FIPRO® non-combustible vermiculite interior (Bureau Veritas MED certified)
- Suppression Agent: TRIDENT® water-based biological cooling and extinguishing fluid

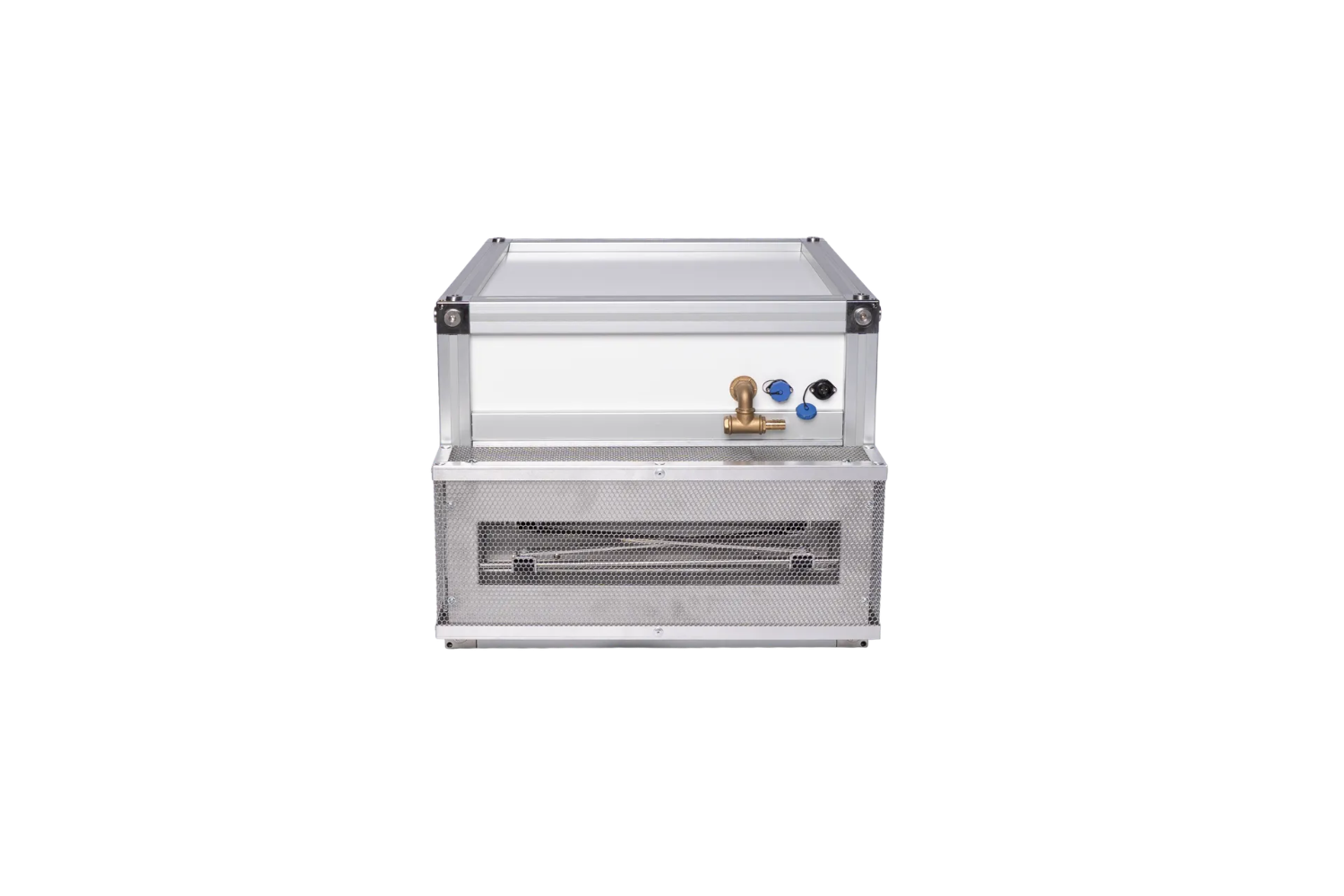

- Secondary Protection: Dedicated 1/2-inch fresh water connection for infinite manual compartment flooding

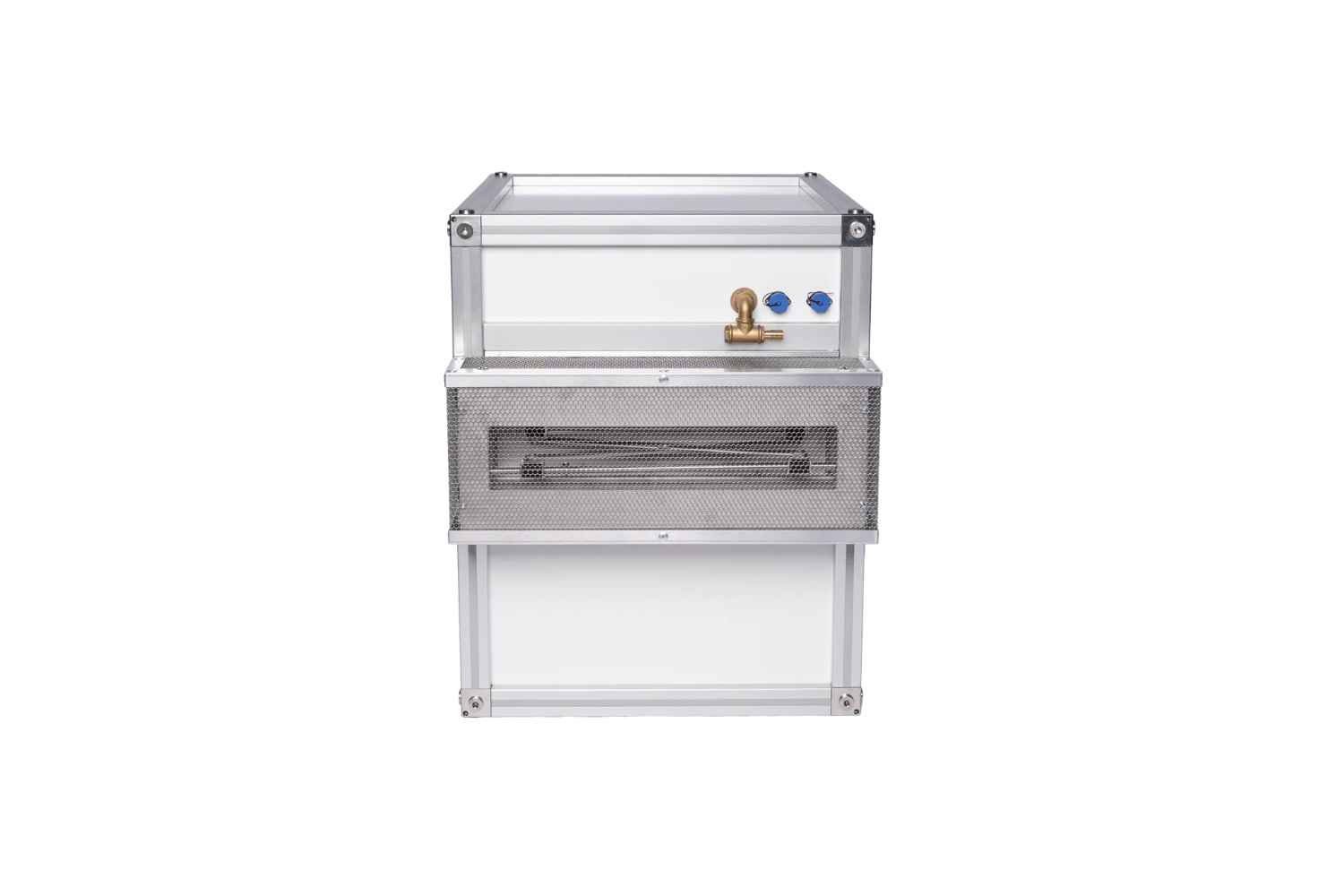

- Gas Filtration: Multi-stage matrix absorbing toxic hydrofluoric acid (HF), hydrogen, and VOCs
- Sensor Array: Redundant electronic system featuring 2x thermal sensors, smoke sensor, and gas sensor
- Control Unit: Integrated programmable logic controller (PLC) with waterproof touchscreen display
- Vessel Integration: Full connectivity to the ship’s primary Alarm Monitoring and Control System (AMCS)
- Emergency Power: Built-in redundant power supply providing a 3-day emergency backup duration
- RACLAN® RAMBSS Module (Configured to selected size) ×1
- Integrated Smart Charging Sockets & Cable Glands ×1
- Integrated PLC Touchscreen Monitor Matrix ×1
- Emergency System & Flap Overriding Mechanical Keys ×2
- Ship AMCS / Alarm Integration Hardware Interface ×1
- Marine Installation & Operations Manual ×1
